Description

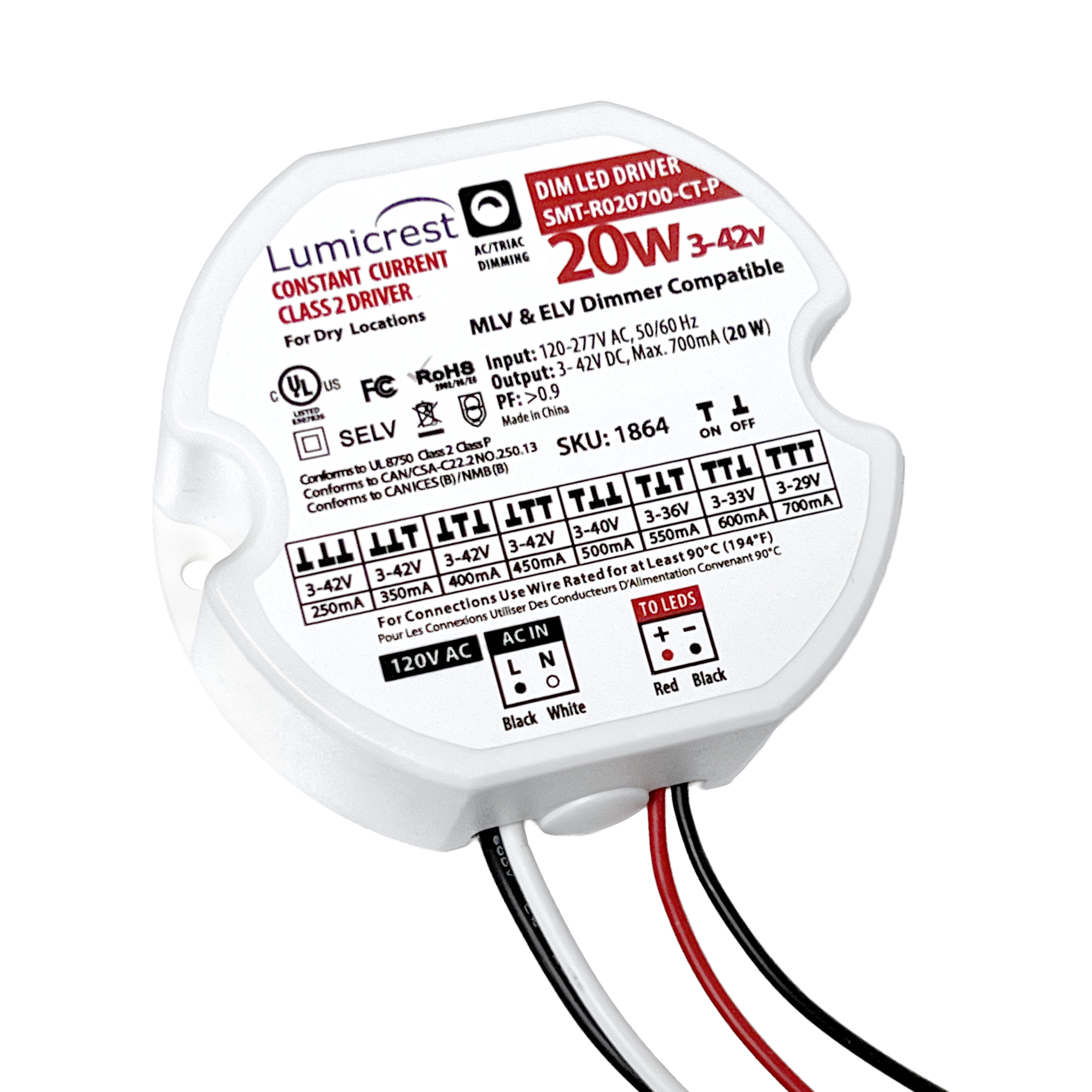

Compact constant current 20 watt MLV/ELV dimmable power supply.
Round, low-profile constant current drivers that mount inside canopies or standard octagon junction boxes. DIP-selectable current, wide output voltage range, MLV and ELV dimmable. Available in 10W and 20W models.
Whether you’re designing new fixtures or replacing failed constant current drivers in fixtures, these drivers provide
the solution.
Dimming Performance:
Dims from 100% to 1%. Compatible with MLV & ELV dimmers, it provides smooth dimming control in a compact form factor.
Power capacity: Handles up to 10 or 20 watts of DC power.
Variable Input Voltage Range:
Operates with input voltages from 3V to 42V AC.
Change current using the DIP switches on the side.
No minimum load requirement:
Effectively dims even the smallest LED loads (many drivers cannot).
Features and benefits:
• Flicker-free
• Silent operation, without hum or buzz
• Dimmable to 1%
• Safe operation: overload, thermal and short-circuit protection. Class 2 current-limited design.
Rated for safety and reliability:
Meets rigorous safety standards to ensure dependable performance. cUL certified and Class 2 protected via “hiccup mode” (output flashes on and off).
Rated for dry locations
Installation:

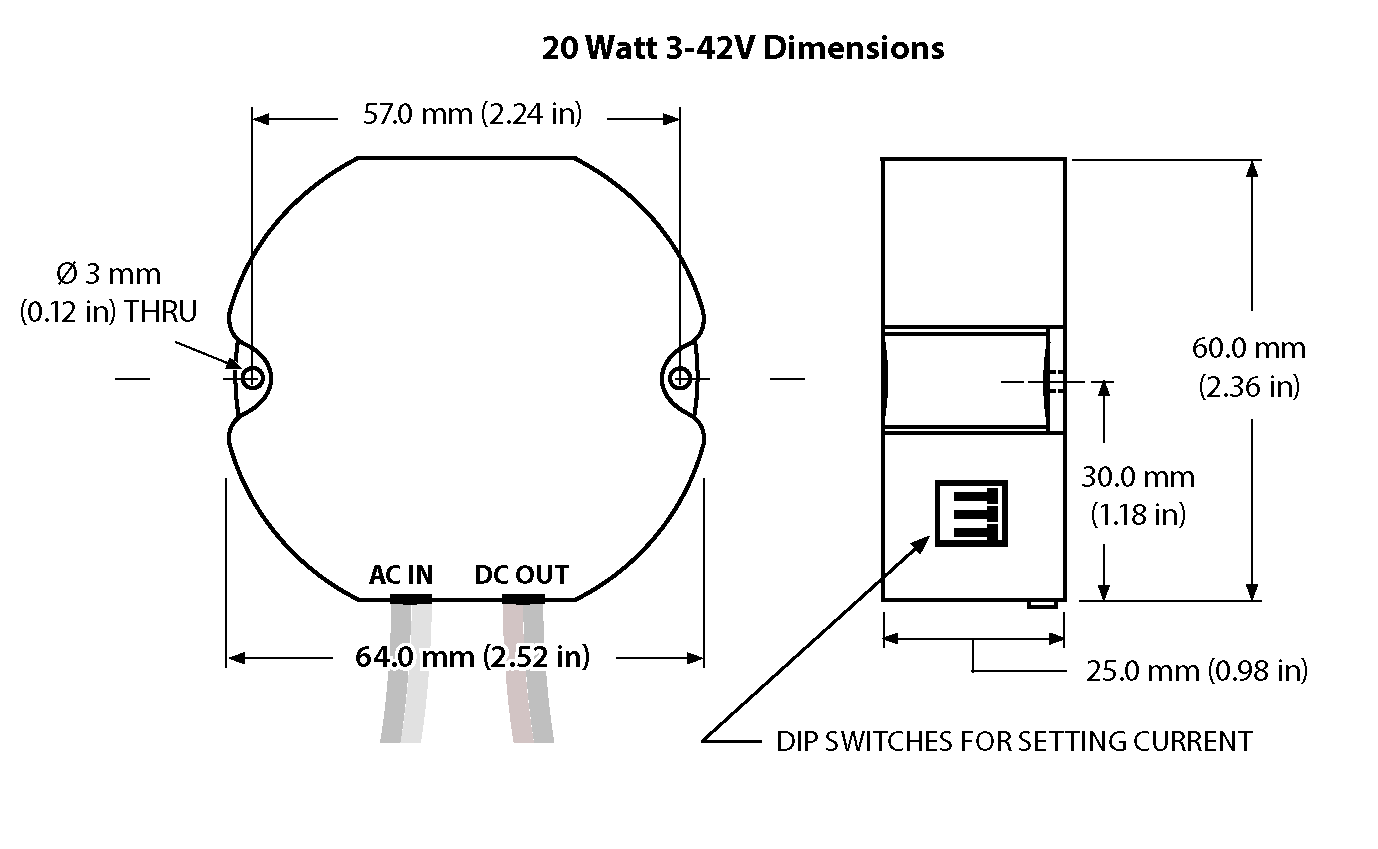

Small enough to fit inside octagon boxes and canopies.
Weight: 94g (0.207lbs)
Datasheet: click for pdf
