Description
SORAA’s LED PAR36 lamps, featuring advanced GaN on GaN™ technology and point source optics ensure amazing colour rendering, natural looking whites and crisp shadows. Choose VIVID when colour rendering and full spectrum lighting are paramount.

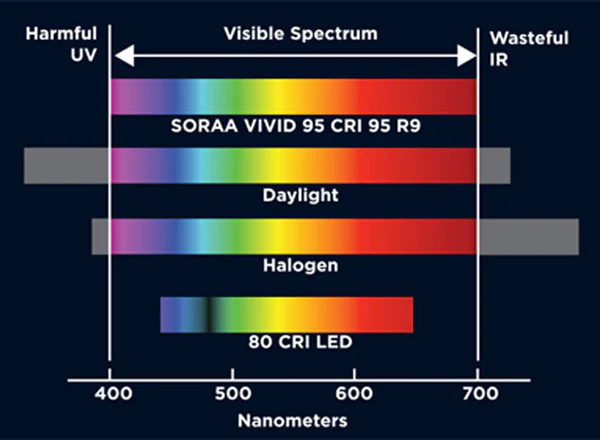

Perfect Spectrum Light
With a CRI of 95 the VIVID renders all colours in the visible spectrum and, unlike halogen, emits no UV or Infrared.

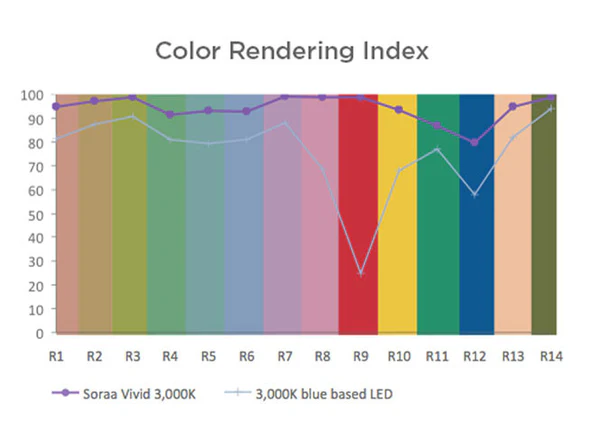

Vibrant Colours, Richer Reds
Only full-spectrum light sources can accurately render the full visible spectrum of colours. The SORAA VIVID with its perfect spectrum, CRI of 95 and R9 of 95, makes colours look vibrant, and reds look especially rich.
Clean, Whiter Whites
Unlike conventional LED light sources which use blue emitters, SORAA’s LED light sources are based on violet emitters that accurately render clean, whiter whites.
Product Features
18.5W provide up to 100W PAR36 halogen lamp equivalence
Clean, Whiter Whites – Unlike conventional LED lights which use blue emitters, SORAA’s LED light sources are based on violet emitters that accurately render clean, whiter whites
Single LED light source ensures a perfect circular beam with high center-to-edge colour consistency, crisp shadows and minimal light spill
Reliable Dimming – Compatible with a wide range of existing fixtures, transformers, and dimmers
– Par36 require a 12 volt power source
– For indoor use
– Soraa Model number SP36-18-09D-930-03
VIVID SERIES OUTPUT RANGE: 930 – 1050 lumen
BEAM ANGLE RANGE: 9°
COLOR TEMPERATURE RANGE: 3000K
APPLICATION Halogen replacement for indoor & outdoor applications
INTENDED USE AND APPLICATIONS
Intended for use in AR111 compatible recessed downlights, track lighting and other indoor and outdoor applications
Soraa lamps are designed to safely turn down in any thermal environment not conducive to minimum airflow or proper ventilation

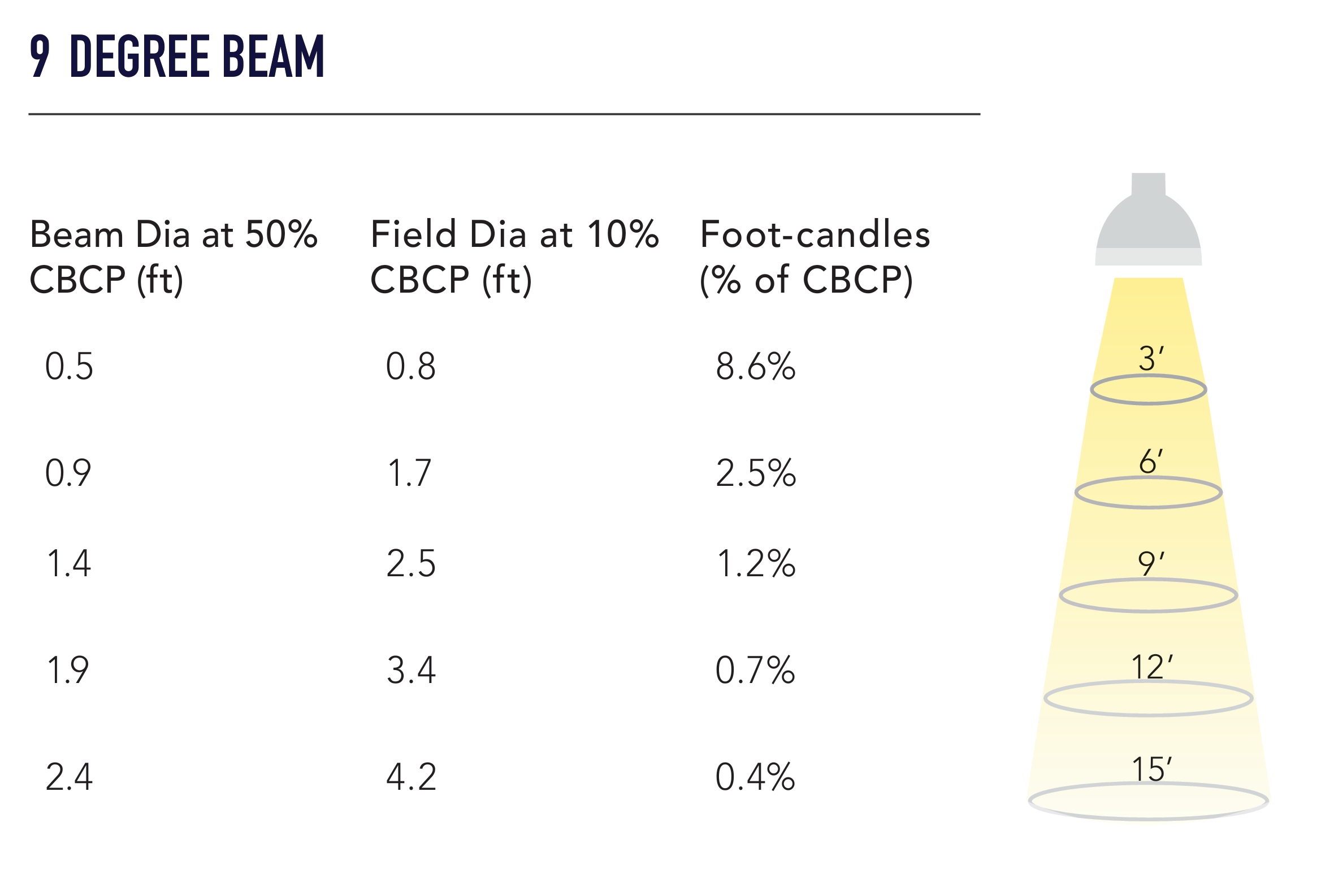

POINT SOURCE OPTICS
Exceptional beam control enables unique 9° narrow spot and smooth uniform beams
Single light source, single crisp shadow
VP3 VIVID COLOR & VP3 NATURAL WHITE
VIVID series provides accurate color rendering across the visible spectrum from 400nm to 700nm, with CRI/95*, R9/95*, Rf/90, Rg/100
Whiteness rendering matches or exceeds that of halogen and incandescent sources at 2700K and 3000K
HIGHLY COMPATIBLE
Narrow spot compatible with Soraa SNAP System accessories
Thermally and geometrically compatible with standard fixtures and suitable for damp locations
Suitable for fully enclosed fixtures. Can be used with front glass cover
Works with trailing edge and leading edge phase cut dimmers, 12V AC magnetic and electronic transformers and 12V DC transformers (see www.soraa.com/resources)
ENERGY EFFICIENCY & LONG LIFE
85% more energy efficient than standard halogen lamps
Typical payback of one year or less
Rated lifetime of 35,000 hours.
CERTIFICATIONS
UL/CUL Class 2 and non-Class 2, FCC Title 47 Part 15B, RoHS, CE

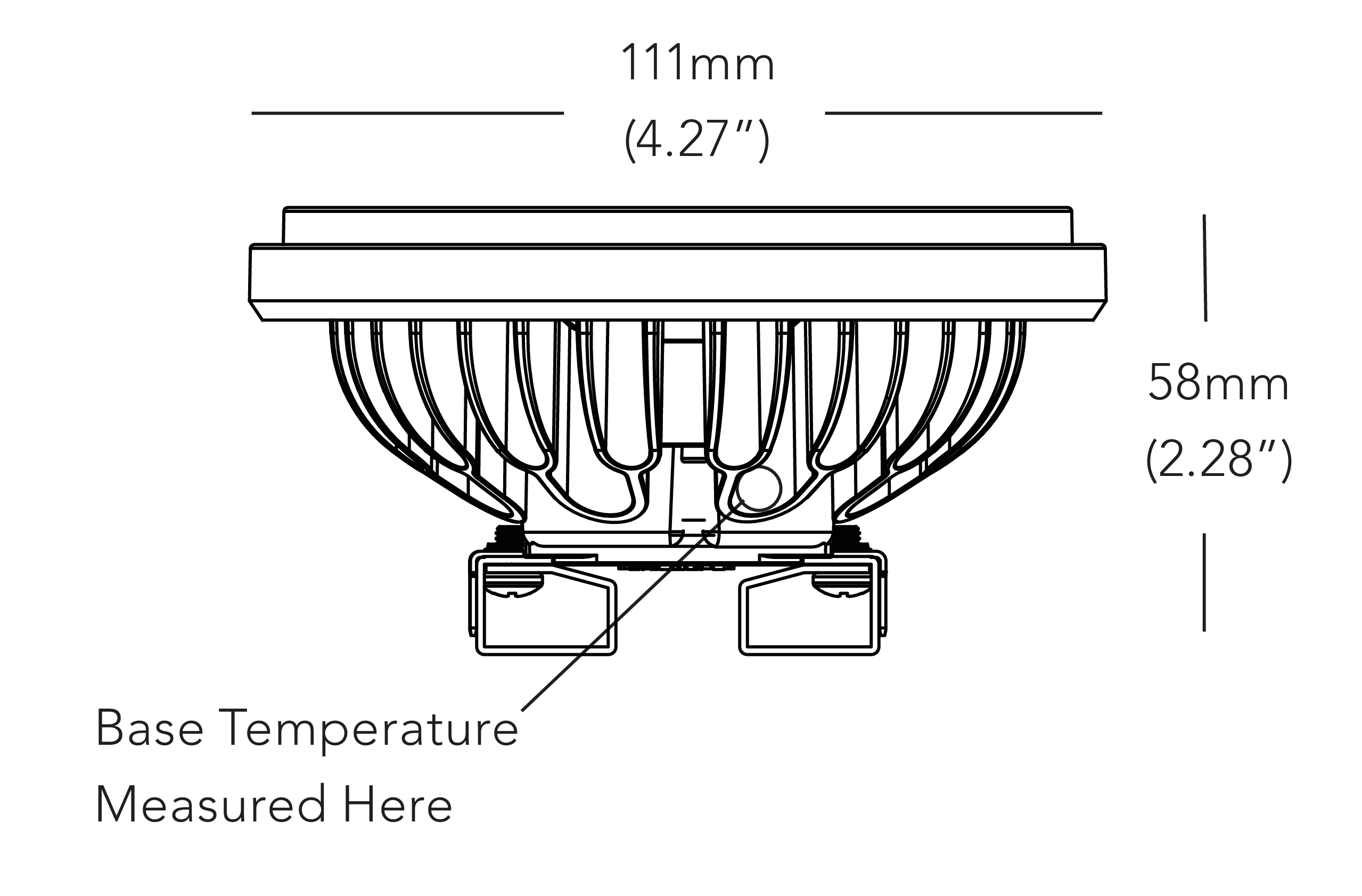

GENERAL SPECIFICATIONS
Form Factor
– Width: 111mm (4.37”)
– Height: 57mm (2.24”)
– Weight: 280g
Operating Temperature
– Minimum: -40°C (ambient)
– Typical: 70°C – 80°C (base)
– Maximum: 90°C (base)
Electrical
– Wattage: 18.5W
– Power factor: 0.92
– Voltage: 12V +/- 1.2V
– Frequency: 50/60Hz
– Dimming and Flicker
– Dimmable to <20%
– Flicker Index < 0.1
– Percent Flicker: 28%
