Description
Quality track for the right lights:

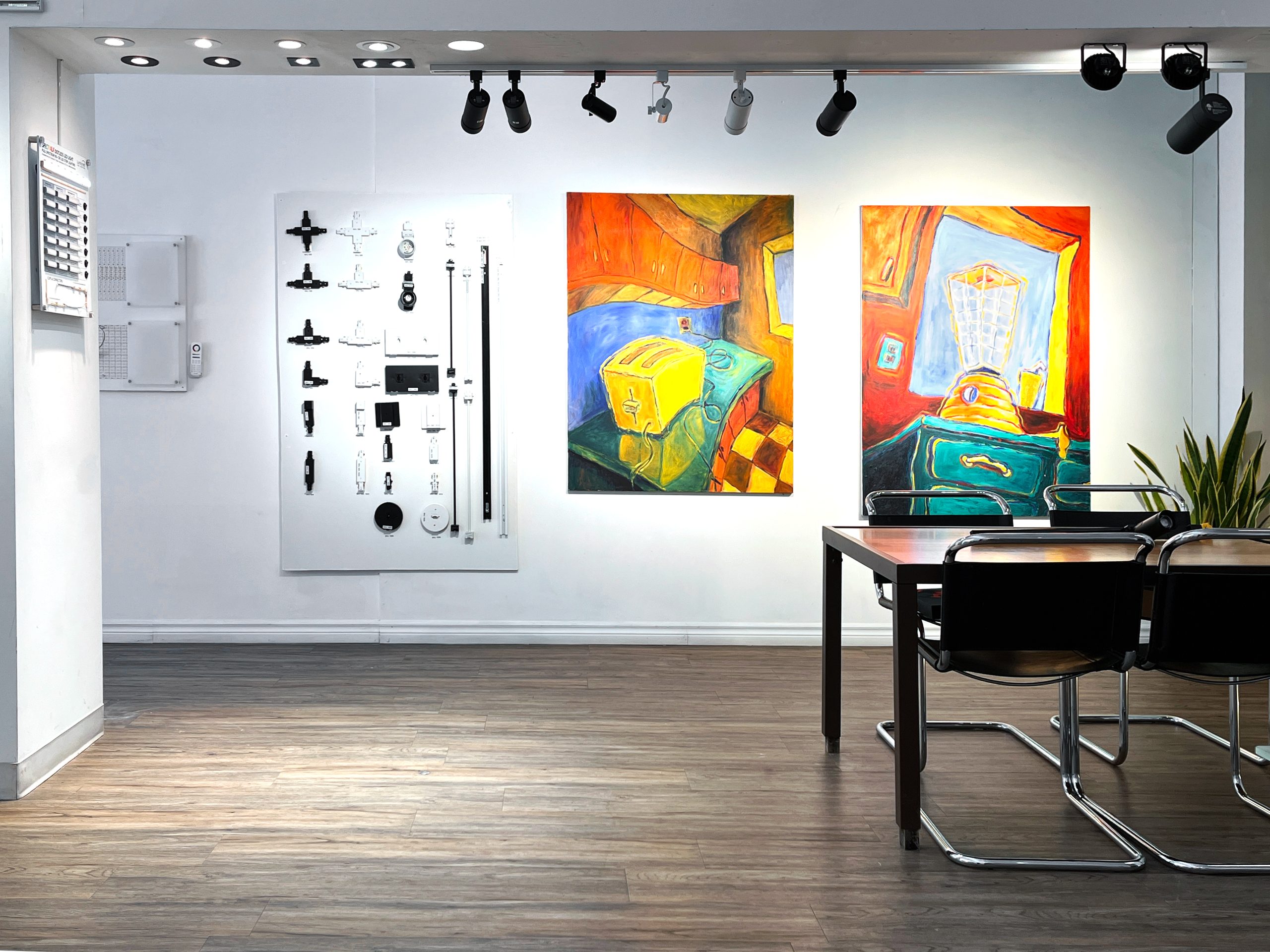

Illuminate your gallery, restaurant, store or home with our museum-quality lighting track system. Standard with the 2-conductor Lightolier system (L-type), it is compatible with every track light we offer. All track heads and extenders can be mounted at any point along the track. Attach the lighting track directly to the ceiling with the included mounting screws, or suspend it if your ceiling is very high.
Compatible with all our best lights:
Standard with the 2-conductor Lightolier system (L-type), it is compatible with our high CRI integrated track heads such as Apturi III and Modulux. For our standard track heads, contact us and ask for a track connector swap for a marginal fee (all products sold separately).
Track heads can be mounted at any point along the track with a simple twist to secure them in place.
Dimensions & installation:
Attach the lighting track directly to the ceiling with the included mounting screws, or suspend it if your ceiling is very high.

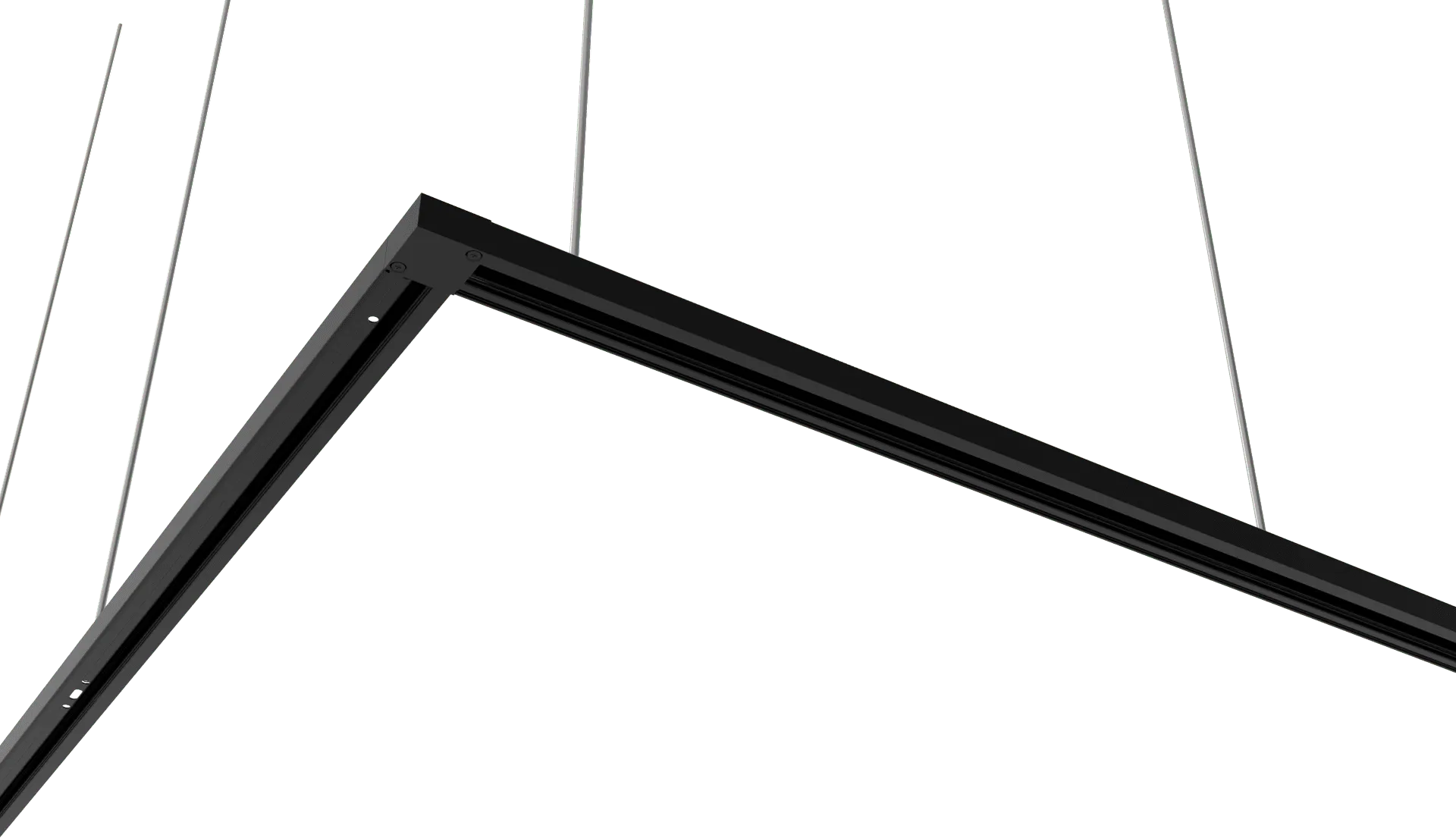

The track may be surface, stem, or cable mounted. Surface mounting hardware and dead-end caps are included with each track section
Install using a variety of connectors (sold separately) to feed power to the track, or to connect multiple tracks in a straight line or other configurations using L connectors, T connectors and more. See options listed below and at the bottom of this page in the “Works Together With” section, or view all track products here: Track Connectors

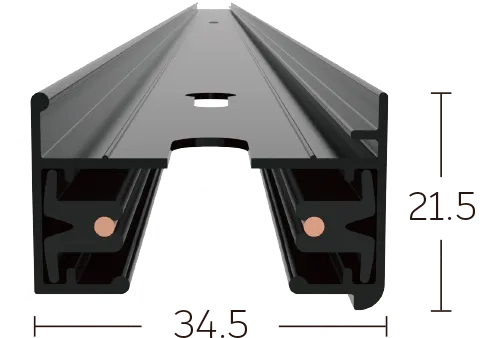

2438.4 mm (8 ft) length segments (cuttable), 2444.75 mm (96.25 in) actual length, including end caps)
34.5 mm (1.36 in) width
21.5 mm (0.85 in) height
The die cast aluminum track can easily be cut shorter using a hacksaw. Follow the enclosed directions for cutting.
Voltage: 120V 60Hz / 20A Max.
Maximum Wattage: 2300 watts
cULus Listed for indoor, dry location
Recommended Lightolier products:
A variety of connectors (sold separately) are available to feed power to the track, or to connect multiple tracks in a straight line or other configurations using L connectors, T connectors and more.
See options listed below and at the bottom of this page in the “Works Together With” section, or view all track products here: Track Connectors
- Live End Feed
Powers track system from the end of a run. Bottom knockout allows direct feed with an electrical connector. - Floating Canopy Feed
Mounts to a 4″ or 3″ octagon outlet box. Canopy can be placed anywhere along the track to supply power. - Live End Conduit Connector (Coming Soon)
End feed, which accepts a 0.5 in trade-size conduit fitting through the end knockout. Left polarity can also be used to jump power to another run. - Straight Inline Connector
Used to connect two pieces of track together and pass the electricity to create a longer run. Cannot be used as a power feed. - “L” Connector (Coming Soon)
Used to connect two pieces of track together at a right angle and carry the electricity. Can be used as a power feed with one knockout. Can be adjusted to accommodate left and right polarity. - “T” Connector
Used to connect two pieces of track together in a “T” shape and carry the electricity. It can be used as a power feed with one knockout.
Instructional Videos:
- How To Cut and Prepare Track
- Using the Live End Connector
- Comparing Power Connectors
- Using the Inline Track Connector
- Using the Canopy Connector
- Using the L Track Connector
- Using the T Connector
Questions?
If you have questions about installing LED strip, how to connect multiple reels, how many power supplies you need, or anything else, give us a call at 1-877-910-1011 or 416 479 0132 or contact us via the website contact form. We’ll help you work it out!
