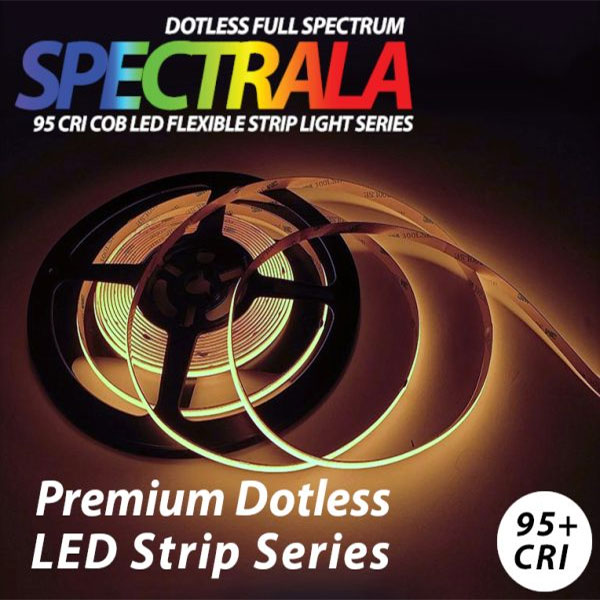

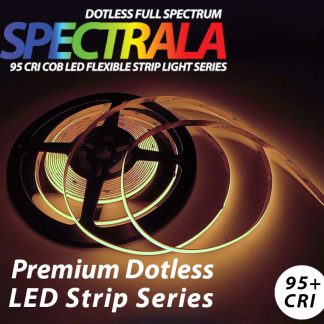

Spectrala™ Series: 24V Dotless High-CRI (95+) LED Strip 5m/16.4ft Reel (+ Options)

From: $52.95

Spectrala™ provides high-accuracy full spectrum (95+ CRI) ultra-smooth LED lighting without the unsightly look of dots. Its lighting effect is perfectly uniform, with or without using Aluminum Channel & Diffuser. We do recommend that you use aluminum channel with this product because the metal acts as a heat sink and will increase the longevity of your strips.

You’ll need a power supply, wall dimmer, and aluminum profile with this product. The products below are recommended as the best suited to work together with this LED strip:

Spectrala­™ 24V Dotless White High CRI (95+) LED Strip Light, 4.5-18 watts/m, 5m (16.4 ft.)

Spectrala™ is our newly-arrived 95+ CRI full-spectrum dotless COB family. It's designed for the most demanding lighting applications, including film production, art galleries & museum lighting. Retail displays, fine restaurants, bars, lounges and fine residences will all benefit from Spectrala's impeccable quality of light and super-smooth appearance. It's the LED strip family you've been dreaming of!

Spectrala is available in 7 colour temperatures and 3 lumen intensities per colour temperature. Operates on 24V DC and comes in 5 meter (16.4 foot) reels.

Product Datasheet:
Spectrala Complete Product Line Datasheet

Clear

Strip to Strip Connector for Dotless White Strip (8mm and 10mm)

Accent and Standard LED strips use 8mm clips, High Output uses 10mm.

To connect two pieces of LED strip, simply insert them into each end of the connector. Squeeze the metal contacts down firmly with pliers, ensuring they are flush with the top of the plastic connector. Now you have a secure and reliable connection.

Strip to Strip Connector with 6 Inch Jumper Wire for Dotless White Strip (8mm and 10mm)

Accent and Standard strips use 8mm clips, High Output uses 10mm. Push the ends of the two strips you want to connect into the connectors at either end of the wire. Squeeze the metal contacts down firmly with pliers, ensuring they are flush with the top of the plastic connector. Now you have a secure and reliable connection. . 8mm - SKU 1156, 10mm - SKU 1159

Strip to Wire Connector for Dotless White Strip (8mm and 10mm)

Accent and Standard strips use 8mm clips, High Output uses 10mm. Simply push the ends of the two strips you want to connect into the connectors at either end of the wire. Squeeze the metal contacts down firmly with pliers, ensuring they are flush with the top of the plastic connector. Now you have a secure and reliable connection. 8mm - SKU 1155, 10mm - SKU 1158

Low Profile Workhorse Aluminum Channel - Surface Mount (2.5m/8ft)

15.9 mm (5/8 inch) wide x 8 mm (~1/4 inch) high. This channel is very low-profile, perfect for under cabinet lighting and more. SKU 1230

Shallow Flexible LED Channel

Flexible Aluminum Channel - Surface Mount (2.5m/8ft)

17 mm (3/4 inch) wide x 5 mm (1/4 inch) high. This super-low-profile channel can be used on flat surfaces, or easily bent to conform to curves such as arches. SKU 1161

Corner LED Channel

Aluminum Channel - Corner Mount (2.5/8ft)

18 mm (11/16 inch) wide x 18 mm (11/16 inch) high. This channel allows the light to shine at a 45 degree angle. It can fit inside a corner or be used to illuminate shelving, niches or inside cabinets. SKU 532

Small Corner LED Channel

Aluminum Channel - Corner Mount (2.5/8ft)

Small Rounded Corner Mount (2.5m/8ft) 16 mm (5/8inch) tall x 16 mm (5/8 inch) wide - SKU1169

TLX 40 Watt AC/Triac Dimmable Hardwire 24V Power Supply

Can power 1.9 reels of Accent (4.5w/m), .9 reels of Standard (9w/m), or about1/2 reel of High Output (18w/m).
SKU 807

TLX 60 Watt AC/Triac Dimmable Hardwire 24V Power Supply

Can power up to 2.6 reels of Accent (4.5w/m), 1.3 reels of Standard (9w/m), or .6 reels of High Output (18w/m).
SKU 1282

TLX 100 Watt AC/Triac Dimmable 24V Hardwire Power Supply

Can power up to 4.3 reels of Accent (4.5w/m), 2.2 reels of Standard (9w/m), or one full reel of High Output (18w/m).
SKU 803

Leviton Sureslide Dimmer - 150 watt LED capacity

Can handle up to 6.5 reels of Accent (4.5w/m), 3.2 reels of Standard (9w/m) and 1.6 reels of High Output (18w/m)
SKU 482

Leviton DSL06_1LZ dimmer

Leviton DSL06 Dimmer - 300 watt LED capacity

Can handle up to 13 reels of Accent (4.5w/m), 6.4 reels of Standard (9w/m) and 3.2 reels of High Output (18w/m)
SKU 1382

Legrand Radiant Decora 120V LED Dimmer, 450w LED capacity

Can handle up to 20 reels of Accent (4.5w/m), 10 reels of Standard (9w/m) and 5 reels of High Output (18w/m)
SKU 560

Legrand Radiant One-Gang Screwless Wall Plate

Can be used on any common Decora-shape dimmer or switch.

SKU: Spectrala Dotless LED COB Strip + Dimmable Driver Bundle Categories: , , , , ,

Description

Introducing our new 95+ CRI full-spectrum dotless COB family. We call it Spectrala™. It’s designed for the most demanding lighting applications, while remaining surprisingly affordable.

Spectrala is available in 7 colour temperatures and 3 lumen intensities per colour temperature. Available colour temperatures are 2200K, 2700K, 3000K, 3500K, 4000K, 5000K and 6000K.

It has a quality 3M self-adhesive backing – just cut it to the length you want then peel and stick it to any smooth surface! Great for under cabinets, closets, task lighting, cove lighting and whatever else you can imagine.

Lumicrest High CRI Flexible Strip Lighting has always been the choice of museums and art galleries because of how accurately it represents the colours.

Requires a 24 volt DC power supply (sold separately). What size power supply do I need?

All of our products come with a full 3 year warranty.

Advantages of using 24 volt LED strips compared with 12 volt are:
– the LED strip maintains consistent brightness over its whole length
– you can mount the power supply further away (without being concerned about voltage loss in the wires)
– you can run sections longer than 5 meters with consistent brightness (assuming you choose a power supply with sufficient wattage)

If you have a question about installing LED strip, how to connect multiple reels, how many power supplies you need, or anything else, give us a call at
1-877-910-1011 or 416 479 0132 or contact us via the website contact form. We’ll help you work it out!

* designed for indoor use (we can add a waterproof sleeve for outdoor use for an extra charge)
* we recommend 2200K or 2700K warm white for intimate, cozy environments such as clubs and restaurants
* we recommend 3000K or 3500K white for kitchen under-cabinet applications
* we recommend 3500K or 4000K white for most display lighting applications

CRI (Color Rendering Index) is 95 or greater.
Width: – 8 mm (5/16 inch) wide for Accent and Standard models
– 10 mm wide for High Output models

Product Datasheet:
Spectrala Complete Product Line Datasheet

Additional information

Strip to Strip Connector with 6 Inch Jumper Wire for Dotless White Strip (8mm and 10mm)

Size (mm)

10mm, 8mm

Strip to Wire Connector for Dotless White Strip (8mm and 10mm)

Size (mm)

10mm, 8mm

Low Profile Workhorse Aluminum Channel - Surface Mount (2.5m/8ft)

Finish colour

Silver anodized, Black, White

Specifications & Photometry

Lumens:
– Accent line (4.5w/m): 337 lm/m (2200K) – 580 lm/m (6000K)
– Standard line (9w/m): 675 lm/m (2200K) – 1161 lm/m (6000K)
– High Output line (18w/m): 1215 lm/m (2200K) – 2088 lm/m (6000K)

CRI: 95+ (What is CRI?)
Total Length: 5 meters (16.4 feet)
Width:
– 8 mm for Accent and Standard lines
– 10 mm for High Output line
Cuttable every:
– 50 mm (~2 inch) for Accent and Standard lines
– 62 mm (2.45 inch) for High Output line
Waterproof: No
Operating Voltage: 24 volts DC
Power consumption (watts) :
– Accent: 4.5 watts/m (1.4 watts/ft)
– Standard: 9 watts/m (2.8 watts/ft)
– High Output: 18 watts/m (5.5 watts/ft)

Specification Sheet for Accent line (4.5 w/m)
Specification Sheet for Standard line (9 w/m)
Specification Sheet for High Output line (18w/m)

Spectral Reports (pdf):
3000K
3500K
4000K

Q & A

What can be expected of the heat output of Spectrala high output strips? I plan to put 3 strips aside of each other in a broad (5cm) aluminium profile of about 150cm length, so close to a full reel. Would it require active cooling or would the aluminium mass be sufficient to draw heath? Jojakeem asked on 04/25/2023

The aluminum profile would be enough to dissipate the heat, you should not require active cooling.

 David Geldart answered on 04/25/2023 store manager
(0) (0)
Do you sell adapters that suit 230V European outlets? Jojakeem asked on 04/25/2023

No, we don't have plug adaptors to convert North American plugs to European type.

 David Geldart answered on 04/25/2023 store manager
(0) (0)
